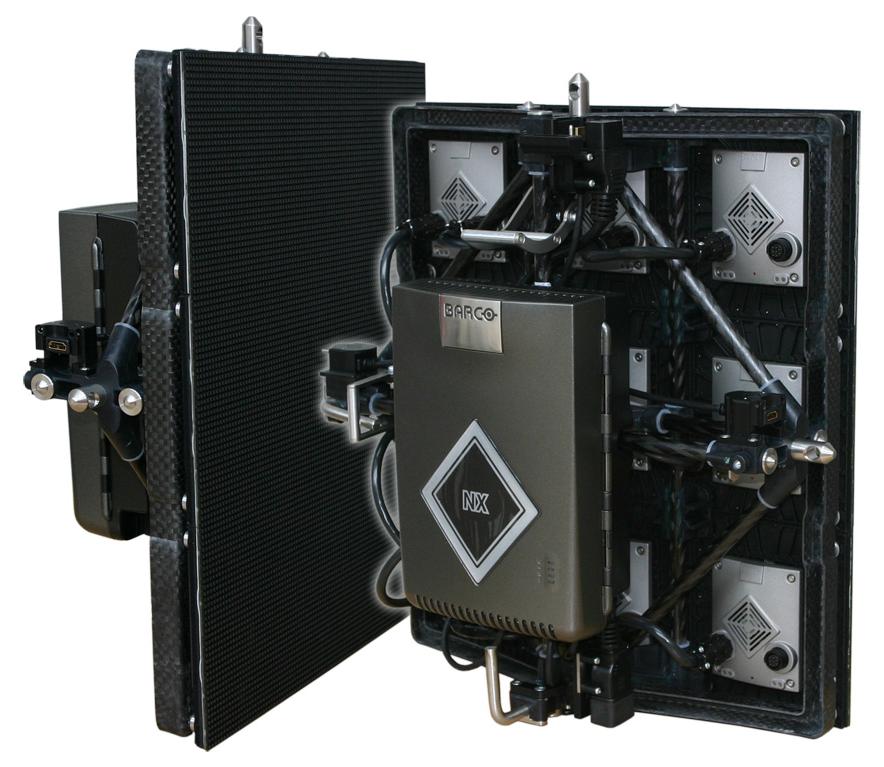

LED Video Wall Rentals – Barco NX-4. Rent hire this LED wall system which produces a phenomenal contrast ratio of 4000:1 and a calibrated light output of 2000 Nit. In addition, a super-black shader casting combined with optimized geometry ensures dramatically enhanced horizontal and vertical viewing angles, a significant reduction in light reflections and deeper black levels than ever before.Barco’s new “Mag-frame,” built of carbon fiber, forms a support system far stronger, far lighter, and ten times less sensitive to deformation than the current “metal” structures. It uses optimized glue rather than screws, providing extremely tight tolerances along all three structural axes (x, y and z). Not only is carbon fiber incredibly strong, it is also super light. The weight of the NX-4 tile including structure and cables is 21% less than ILite 6XP. For the crew, this translates into significant savings in terms of transportation, serviceability, and far less stress on the overhead truss. With Mag-frame, LED modules connect directly to the structure via high-strength neodymium “neo” magnets, rather than traditional screws. No tools are required for mounting or removal. With each magnet capable of holding over 1000 times its own mass, the result is precise positioning, super easy setup, and a totally seamless display.
Product Weight: 29.3 lbs including structure and cable
Dimensions: 17.6″W x 19.8″H x 8.27″D
Pixel pitch: 4.6 mm
Brightness: 2000 Nit display calibrated at 6500K
LED configuration: 3-in-1 SMD
Pixel density
45,931/square meter
4,271/square foot
10,368/tile
Viewing angle
120° horizontal (min 50 % brightness)
+48, -55° vertical (min 50 % brightness)
Contrast ratio: 4000:1 at 500 lux
Lifetime: 60,000H full white, 85 % brightness
Power consumption: 300W maximum, 132W average
Processing: 16 bit/color
Colors: 281 trillion
Refresh rate: 3,200Hz
Temperature
Operating: 32°F – 104°F
Storage: -20° – 140°F
Humidity
35 – 85 % operating
10 – 90 % storage
Source compatibility: CVBS, YC, YUV, RGB, DVI (Single and Dual Link, up to 2048×1536), SDI, HD-SDI, Dual link HD-SDI
Certifications: CE class A, TUV, FCC Class A, ETL, Cebec
